ETi 8ft to 4ft LED Retrofit Kit with Tubes

Item Description

Convert your linear fluorescent fixtures to cutting edge LED technology with this all-in-one retrofit kit. It has everything you need to make your conversion a success:

• Mounting Cover Plate (for 4.5" and 5" wide strip fixtures)
• 8 Non-Shunted Lamp Holders
• 8 Self-Tapping Screws
• 4 4ft 15W T8 Ballast-Bypass LED Linear Tubes

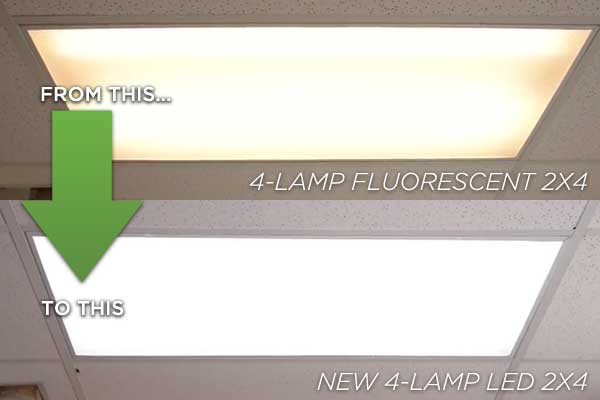

The LED tubes have a universal voltage input of 120-277V and output 1800 lumens each, while consuming only 15 watts. The total fixture will use 60 watts when all four linear lamps are installed, outputting over 7,000 lumens. This kit is perfect for retrofitting 4-lamp 2x4 troffers with 32-watt T8 fluorescent lamps, common in many commercial office spaces and retail spaces, into LED fixtures. It is also great for converting those really old 8-foot long T12 and T8 fluorescent strip lights that are common in utility areas, workshops, and warehouses. Start saving money today by retrofitting your old fluorescent fixture into a UL-listed LED fixture.

Please see the instruction videos below for more information on how to use this versatile kit. (Note: The videos may mention that the LED linear tubes are sold separately, but don't worry...they are included with this particular kit.)

Videos

Downloads

Related Items

Specifications



Voltage	120-277V
Base	G13 Medium Bi-pin socket
Color Temperature	5000K
Light Output	1800 Lumens (per lamp)
Wattage	15 watt
CRI	80
Luminous Efficacy	120 lm/W
Equivalent	32W Fluorescent
Rated Lifespan	50,000 hours
Diffuser	Frosted glass lens
Dimmable	No
Certifications	c/Ul/us, dry/damp locations
Warranty	5-year Manufacturer warranty
Manufacturer	ETi SSL
Manufacturer Model Number	54296168/54296762
