American Lighting LED Linear RGB Wall Washer - 32in

Item # 01-5201RGB-24
Free Shipping Available
Our Price:
$399.00
Lead Time:
Usually ships in 2-3 business days
Contact Us

Item Description

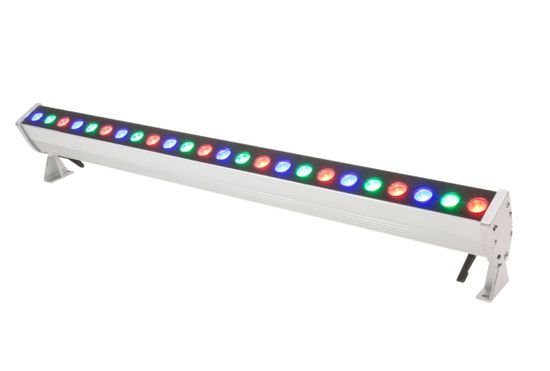

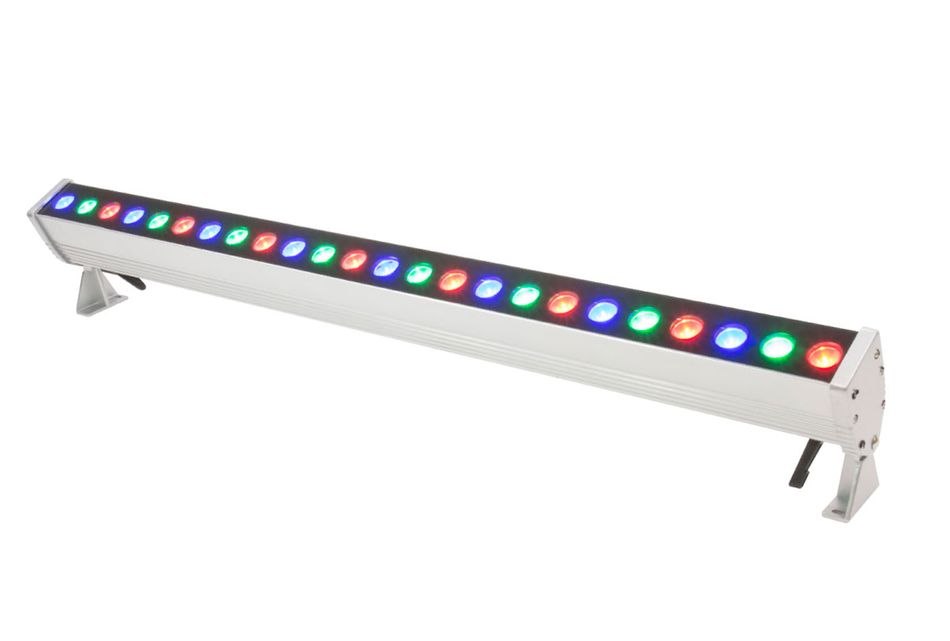

A blend of red, green and blue LED colors that consume 43.2 watts combine for a spectacular combination of millions of colors with the 32" long LED Linear RGB Wall Washer from American Lighting. You will save energy without scrimping on color or performance with these energy-efficient LEDs that don’t require any maintenance. Rated to provide 100,000 hours of light, the wall washer units can be connected directly for up to 18 inch spacing or use signal connector cables to extend the distance between the units.

Voltage 120V AC
Color Red, Green, Blue
Beam Angle 25°
Wattage 43.2 watts
Number of LEDs 24 high power LEDs
Maximum Run (Power) N/A (Units do not daisy-chain)
Maximum Run (Signal) 3,000 feet between controller and final fixture
Connection Leads 5' power cord, 12" input signal,12" output signal
Signal Linking Connect units directly for 18" spacing or use Signal Connector Cables to extend distance between units
Rated Lifespan 100,000 hours
Diffuser Clear polycarbonate lens
Construction Aluminum alloy housing and integrated driver with silver enamel finish, fully sealed for use in wet locations
Dimensions 31-1/2"L x 5"H x 2-3/16"W
Dimmable Via DMX only
DMX Compatible Yes
Suitable for Outdoor Use Yes
Protection Rating IP65 waterproof
Certifications N/A
Warranty 3 year limited Manufacturer warranty
Manufacturer American Lighting
Manufacturer Part Number LLW32-RGB
